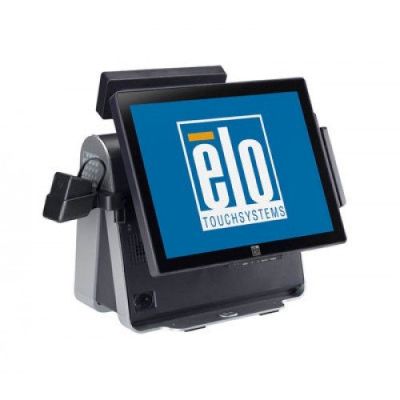

15D1 15" Touchcomputer (Discontinued April 2013)
Como Comprar

Overview

The new D-Series Rev C 15" and 17" All-in-One Touchcomputers continue to bring the same style, flexibility and functionality to point-of-sale (POS), retail and hospitality businesses as the previous versions. With a wide array of field-installable peripherals, spill-resistant sealing and a range of input/output port connection options, the D-Series rev.C models are versatile and powerful. They are designed with the future in mind, allowing easy serviceability of the main components and excellent performance utilizing the Intel Celeron E1500 2.2GHz Dual-Core Processor, just as the previous D-Series models did.

New for the Rev C models are twice the memory and twice the hard disk drive (HDD) storage capacity - now with 2GB DDR3 RAM and a 320GB advanced format HDD. Also new is a DVI-D video output port which simplifies adding a secondary, customer-facing LCD display when used with the new rear-facing LCD bracket kit.

Features
  • "Designed for touch" from the ground-up; stable base and tiltable display - Elo quality and reliability
  • Available with True-Flat AccuTouch® 5-wire resistive, and IntelliTouch® surface acoustic wave technology - Multiple touch technologies, each optimized for different operating characteristics and environments to suit diverse application requirements
  • Touchscreen sealed from the factory - Minimize damage from accidental liquid spills
  • Long-lasting product design - Elo touchcomputers have a history of being available - with an unchanged mechanical design - throughout all phases of project rollouts, and even when future spares are needed
  • Bright high contrast LCD screens - Improved screen readability
  • On-screen display controls located on the bottom rather than the front, plus lockout function for public use - Minimizes accidental or inadvertent changes to the display controls
  • Security lock receptacle - Provides fast, effective, and convenient security
  • Supports 2nd internal SATA hard disk drive - Enables extra storage capacity or disk mirroring (RAID) for data protection
  • Worldwide agency approvals - Meets local agency approvals, as required in many countries
  • Field-installable peripherals - Minimizes downtime with peripherals that are easily installed in the field rather than factory
  • Field-replaceable motherboard, power supply, display head, hard drive(s), and memory - Easy serviceability minimizes downtime
  • Excellent cable management and cables hidden from view - Prevents accidental disconnection and gives a clean, professional look
  • 5 serial ports (2 are powered 5V default/adjustable to 12V), 7 USB 2.0 ports (1x24VDC USB printer power port), Ethernet 100/10 Base-T, cash drawer port (24V default/adjustable to 12V), new DVI-D secondary display output port, 2 PS/2, audio (1 line-in, 1 line-out, 1 mic-in) - Accessible POS/POI-focused input/output ports make installation of peripherals easy
  • Clips on the back of the unit - Allow users to display customer-facing messages or advertising
  • 3-year warranty - Customer satisfaction and peace of mind

Especificações

  • Técnico

    Modelos

    AccuTouch (None, USB, Antiglare, Worldwide) - E328019
    AccuTouch (POSReady 2009, USB, Antiglare, Worldwide) - E409402
    AccuTouch (WinXP Pro, USB, Antiglare, Worldwide) - E126702
    AccuTouch (Win7 Pro, USB, Antiglare, Worldwide) - E772930
    AccuTouch (WinXP Pro, USB, Antiglare, Japan) - E332597
    IntelliTouch (None, USB, Antiglare, Worldwide) - E129811
    IntelliTouch (POSReady 2009, USB, Antiglare, Worldwide) - E836223
    IntelliTouch (WinXP Pro, USB, Antiglare, Worldwide) - E739901
    IntelliTouch (Win7 Pro, USB, Antiglare, Worldwide) - E125031
    IntelliTouch (WinXP Pro, USB, Antiglare, Japan) - E012981

    Cor do Monitor

    Cinza escuro

    Tecnologia do Touch

    Resistivo de 5 fios (AccuTouch®) - toque único
    SAW (IntelliTouch® - Ondas de superfície acústica) - toque único

    Processador

    Intel 2.2GHz Celeron Dual-Core E1500
    512KB L2 Cache
    800MHz System Bus

    BIOS

    AMI

    Memória (RAM)

    2GB Low-Profile 1333MHz DDR3 DIMM on 1 of 2 slots

    Drive de disco rígido

    320GB 2.5" Advanced Format (AF) SATA HDD
    Optional 2nd 320GB hard drive available

    Chipset

    Intel G41 Express

    Tamanho da diagonal

    15'' diagonais, LCD (LED) TFT matriz ativa

    Botões de controle

    Controls (bottom): menu, up, down, select, power
    Settings: brightness, contrast, phase, auto adjust, H-position, V-position, clock, sharpness, RGB, OSD H-position, OSD V-position, OSD time, OSD language, recall, power button
    Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
    Lockouts: user controls

    Proporção da tela

    4:3

    Área ativa

    12.0" x 9.0" / 304.0mm x 228.0mm

    Resolução

    1024 x 768 @ 60Hz

    Número de cores

    16.7 milhões

    Brilho (típico)

    LCD panel: 250 nits
    AccuTouch: 200 nits
    IntelliTouch: 225 nits

    Tempo de resposta (típico)

    8 msec

    Razão de contraste

    700:1

    Ângulo de visão

    Horizontal: ±70° ou 140° total / Vertical: 65°/60° ou 125° total

    Portas de E/S

    2 x PS/2 (1 Keyboard and 1 Mouse)

    Portas USB

    6 x USB2.0 Standard
    1 x 24VDC USB 2.0 Printer Power Port (can be used as standard USB 2.0 port with standard type-A USB cable).

    Porta serial

    1 x RS-232 (standard)
    2 x USB-to-Serial RS-232 (standard)
    2 x USB-to-Serial RS-232 powered (5V default/12V; selectable via jumper)

    Porta Ethernet

    1 x LAN RJ45 (Gigabit)

    Wireless

    Optional USB wireless kit available (802.11b/g/n)

    Porta para gaveta

    1 x cash drawer (12V/24V default; selectable via jumper)
    Compatible with the following APG models:
    MultiPRO 420 with CD-039A cable
    MultiPRO 420 with CD-039A cable

    Vídeo de saída adicional

    DVI-D

    Portas de áudio

    1 x 3.5mm line in
    1 x 3.5mm line-out
    1 x 3.5mm mic-in

    Auto falantes

    Two 2W internal speakers

    sistema operacional

    Sem SO
    Windows XP Professional Service Pack 3 (32-bit only)
    Windows POSReady 2009
    Windows 7 Professional (32-bit only)

    Idiomas

    Windows XP - 24 Grupos de idiomas; Windows 7 - 35 Grupos de idiomas
    Windows POSReady 2009 – 32 Language groups

    Fonte de alimentação

    Internal PSU (270W)
    AC input voltage: 100-240 VAC
    Input frequency: 47-63 Hz

    Tensão de entrada

    100-240 VAC

    Consumo de energia (típico)

    15D1 Without Peripherals: 75W
    15D1 With All Peripherals Connected: 165W

    Dimensões do Touchcomputer com o pedestal

    13.6" x 11.3" x 8.4" / 345mm x 288mm x 212mm

    Dimensões da Caixa

    17.7" x 18.7" x 13.4" / 450mm x 475mm x 340mm

    Peso (com o pedestal)

    22.1 lbs / 10.0 kg

    Peso (embalado)

    26.8 lbs / 12.2 kg

    Temperatura de operação

    0°C to 35°C / 32°F to 95°F

    Temperatura de armazenamento

    -20°C to 60°C / -4°F to 140°F

    Umidade

    Operating: 20% to 80%
    Storage: 5% to 95%

    Aprovações e declarações reguladoras

    UL/cUL
    FCC
    Germany TUV
    Europe CE
    Europe CB
    Argentina AR S-Mark
    Russia GOST-R
    Australia C-Tick
    Japan VCCI
    Taiwan BSMI
    Korea KC
    Mexico COC

    Relógio de tempo real

    Bateria de lítio-ion

    MTBF - Tempo médio entre falhas

    50.000 horas demonstradas

    Opções de montagem

    Ability to secure base to tabletop or desktop; tiltable display/head unit

    Garantia

    3 anos

    Vedado

    Touchscreen sealed to bezel (IntelliTouch)
    Touchscreen sealed to sub-bezel (AccuTouch)
    Touchscreen sealed to LCD (all)

    Cabos de força

    North American and European power cables included

    Outras características

    Serviceable internal components
    Threaded holes on bottom of base for secure mounting
    Kensington security lock

    Opções de upgrade

    Segundo disco rígido de 320GB (HDD) Kit

    Opções de expansão

    Optional USB wireless kit available (802.11b/g/n)
    Second HDD kit
    Memory kits

    Modelos de cabo de força por região para E-Series

    América do Norte - Elo P/N: E042259

    Caneta stylus IntelliTouch opcional

    D82064-000, available at additional cost.

    Periféricos opcionais

    Tela para o cliente 7” LCD _ Elo P/N: E791658 (AccuTouch®)

    Optional Accessories/Peripherals

    Second 320GB Advanced Format (AF) Hard Disk Drive (HDD)
    Second HDD/SSD Mounting Kit Only (no drive)
    Rear-Facing LCD Mounting Bracket Kit
    2GB Low-Profile DDR3 Memory DIMM Kit
    4GB Low-Profile DDR3 Memory DIMM Kit
    Single-line Barcode Reader
    Omni-directional Barcode Reader
    Magnetic Stripe Reader (MSR)
    7" 0700L Rear-Facing Customer LCD (touch - E791658 or no touch - E807955)
    Customer Display (2x20 VFD)
    Biometric Fingerprint Reader (FPR)

    Magnetic Stripe Reader (MSR)

    The MSR is a USB 2.0 device that reads all three data stripes on standard credit cards or driver's licenses conforming to ISO/ANSI standards. The MSR has foreign language capability. The MSR is powered from the USB port; no external power is needed. The MSR features are:

    Reads up to 3 tracks of information
    Bidirectional swipe reading
    Superior reading of high jitter, scratched, and worn MagStripe cards
    - Reliable for over 1,000,000 card swipes
    - Reads ISO7811, AAMVA, and most other card data formats
    - PC software makes configuration changes easy
    - Swipe speeds from 3 to 60 inches per second
    - Interfaces: USB-IDTech-HID
    - Fully supports USB 2.0
    - Part Number: E145919
