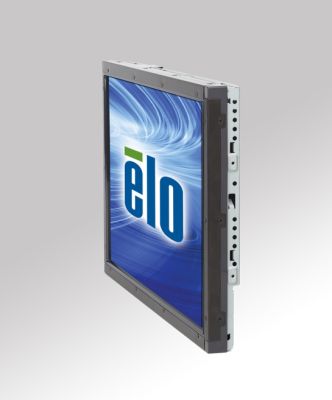

1938L 19" Open Frame Touchscreen (Discontinued June 2015)
Overview
The 1938L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.
Like all Elo open-frame touchmonitors, the specifications and tooling are controlled to ensure a long product life, which is important in maintaining continuity for all phases of project rollouts and servicing. The 1938L features an injection-molded bezel with a virtually invisible water-resistant seal, thus making it a good choice to withstand the rigors of public use. Narrow borders, black anodized bezel hardware, multiple mounting options, and dual serial/USB touch interface add to the touchmonitor's flexibility. Worldwide agency approvals cover the entire monitor that is developed, built and supported by Elo TouchSystems, a true single-source supplier.
The 1938L is available with a choice of IntelliTouch surface acoustic wave and SecureTouch surface acoustic wave touch technologies. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.) The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
Features
- High quality panel with 160°x160° viewing angle
- 1000:1 contrast ratio
- Long lasting product cycle-enclosure controlled by Elo specifications
- Future generation panels phased-in without external changes
- Integrated precision minibezel with water-resistant 0.5 mm seal
- Mounting options including rear-mount (with two included mounting brackets) and VESA mount
- IntelliTouch or SecureTouch surface wave touch technology with dual serial/USB touch interface. (SecureTouch monitors use a 3 mm chemically strengthened glass touch sensor.)
- Integrated multilingual on-screen display (OSD), connector for optional remote on-screen display (OSD)
- Worldwide agency approvals
- Three year warranty
- 3-D electronic design files available
Especificações
-
Técnico
Modelos
IntelliTouch (Antiglare, Asia/Pacific) - E181041
SecureTouch (Antiglare, Asia/Pacific) - E799738
SecureTouch (Antiglare, Americas, EMEA) - E681264Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
SAW (SecureTouch - Ondas de superfície acústica) - toque únicoInterface do touch
Dual serial/USB
Tamanho da diagonal
19'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Controls (optional remote with 1.8m cable): Auto/Sel, up, down, menu
Controls (back): menu, left, right, select, power
Settings: contrast, brightness, H/V position, RGB (color temp), clock, phase, recall
Languages: English, French, Italian, German, Spanish, Traditional Chinese, Simplified Chinese, Korean, Japanese
Lockouts: power, user controlsProporção da tela
16:10
Área ativa
16.1" x 10.0" / 408 mm x 255 mm
Resolução
1440 x 900 at 60 Hz
Outras resoluções suportadas
1680 x 1050 at 60 Hz
1440 x 900 at 60 Hz
1366 x 768 at 60 Hz
1360 x 768 at 60 Hz
1280 x 1024 at 60 or 75 Hz
1280 x 960 at 60 Hz
1280 x 768 at 60, 65 or 75 Hz
1152 x 864 at 75 Hz
1024 x 768 at 60, 65, 72 or 75 Hz
832 x 624 at 75 Hz
800 x 600 at 56, 60 or 72 Hz
720 x 400 at 70 Hz
640 x 350 at 70Hz
640 x 480 at 60, 66 or 72 HzÂngulo de visão
Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 250 nits
IntelliTouch: 225 nits
SecureTouch: 220 nitsTempo de resposta (típico)
3.7 msec
Razão de contraste
1000:1
Formato da entrada de vídeo
Analog VGA, DVI (Asia/Pacific models without DVI)
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type, DVI-D
Fonte de alimentação
External DC - Optional power brick (sold separately)
Conector da entrada do monitor
Type: DC Barrel Jack
Barrel inner diameter: 6.4mm (+/- 0.3mm)
Pin outer diameter: 2.0mm (+0.0 -0.1mm)
Barrel depth: 8.8mm (+/- 0.3mm)Conector da entrada da fonte de alimentação
Type: DC Barrel Plug
Barrel outer diameter: 5.5mm (+/- 0.1mm)
Pin inner diameter: 2.1mm (+/-0.1mm)
Barrel length: 9.5mm (+/- 0.5mm)Tensão de entrada
DC: +12VDC ±5%
Frequência de entrada
Horizontal: 83 kHz
Vertical: 76 HzConsumo de energia (típico)
Monitor only: 41.1W
Monitor and power brick: 41.6WDimensões
17.5" x 11.7" x 1.9" / 444 mm x 297 mm x 47 mm
Dimensões da Caixa
21.3" x 6.9" x 15.4" / 540 mm x 175 mm x 390 mm
Peso (sem embalagem)
10.5 lbs / 4.8 kg
Peso (embalado)
15.2 lbs / 6.9 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 10%-90%Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
Worldwide: UL, cUL (Recognized) , TÜV-T Mark, Argentina S, CE, FCC, VCCI, IC, GOST-R Mark, C-Tick (Class B), BSMI, KC, CCC
Opções de montagem
75 mm or 100 mm VESA mount
Rear mount or with included standard mounting bracketsOpções / Periféricos / Upgrades
Fonte de alimentação e kit de cabos para norteamericana - Elo P/N: E005277
Fonte de alimentação e kit de cabos para europeia e coreana - Elo P/N: E571601
Fonte de alimentação e kit de cabos para Reino Unido - Elo P/N: E180092
Fonte de alimentação e kit de cabos para chinesa - Elo P/N: E558862
Fonte de alimentação e kit de cabos para taiwanesa - Elo P/N: E818655
Fonte de alimentação e kit de cabos para japonesa - Elo P/N: E182546
Fonte de alimentação e kit de cabos para argentina - Elo P/N: E887099
OSD remoto Elo (com cabo de 1.8m) - Elo P/N: E622897Brackets & Bezel Kits
E484257, available at additional cost. Minimum order quantity of 50 sets
Cabo de vídeo e touch
Detachable touch and video cables are included
Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
