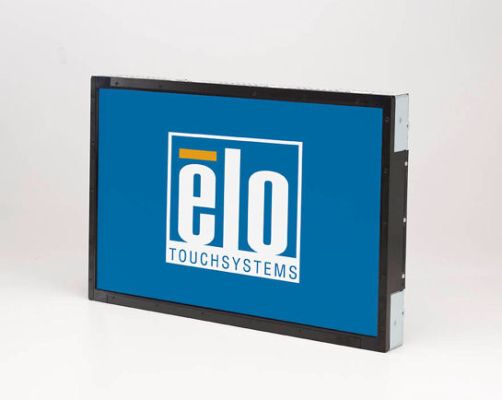

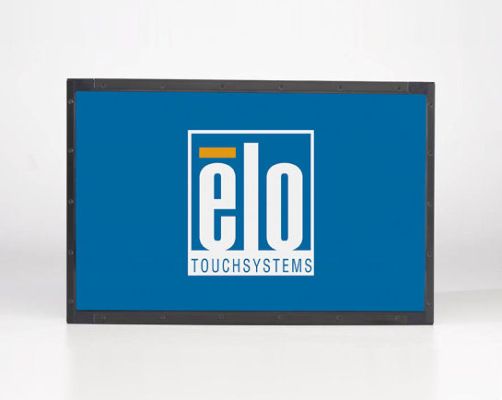

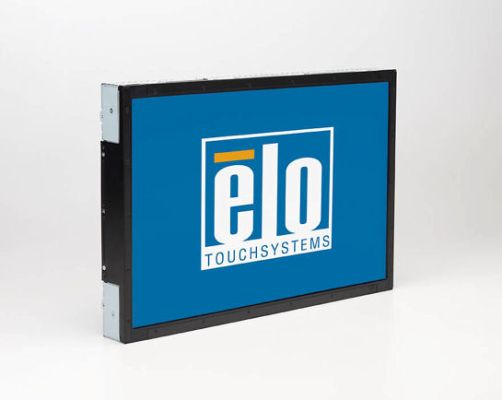

2240L 22" Open Frame Touchscreen (Discontinued November 2014)
Overview
Specifically suited for use in high-traffic casino gaming, video-game entertainment and self-service kiosk environments, the 2240L complements Elo's expanded family of touch solutions for casino gaming, amusement and digital signage. The 2240L features a high quality LCD panel with an ultra-wide viewing angle of 178° x 178° horizontal and vertical, which is wider than most other 22" touchmonitors available today. Colors remain sharp, vivid and true, and graphics retain their integrity due to the 300 nits panel brightness.

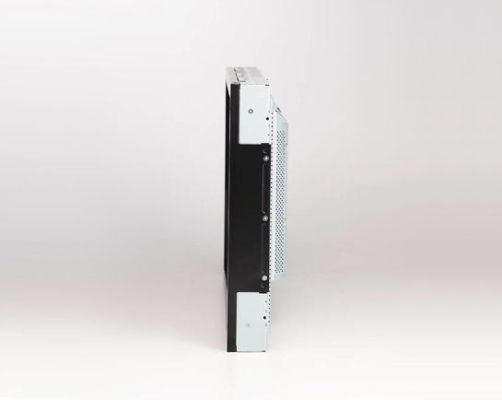

The innovative design of the open-frame 2240L provides a seamless fit for gaming and kiosk applications, and can be deployed in both landscape and portrait orientations. With a front-facing metal hardened anodized bezel and L-mounting brackets and slim dimensional profile (500 x 332 x 80 mm), the 2240L offers installation flexibility in a variety of entertainment and retail environments.
Features
- A bright, high contrast display with ultra-wide 178° x 178° viewing angle easily attracts and holds the users' attention
- Elo Touch Solutions IntelliTouch (surface acoustic wave) technology offers high quality optics, durability, and long-term reliability
- "Designed for touch" from the ground-up, including Elo Touch Solutions proprietary ultra-slim protective bezel for sealing against liquids.
- A long product life with the enclosure controlled by Elo Touch Solutions specifications
- Multiple mounting options are available
- Dual serial and USB connectivity are standard
- Worldwide agency approvals and a three-year standard warranty are backed by Elo
Especificações
-
Técnico
Modelos
IntelliTouch (Clear, Americas) - E496859
Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - toque único
Interface do touch
Dual serial/USB
Tamanho da diagonal
22'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Controls (back): menu, up, down, select
Settings: automatic adjustment, contrast, brightness, H/V position, clock, phase, color temperature, input video select, OSD H/V position, OSD timeout, recall color, recall defaults, sharpness, display information
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: power, user controlsProporção da tela
16:10
Área ativa
18.7" x 11.7" / 474 mm x 296 mm
Resolução
1680 x 1050
Outras resoluções suportadas
720x350 @ 70Hz
720x400 @ 70Hz
640x480 @ 60Hz, 66Hz, 72Hz
800x500 @ 60Hz
800x600 @ 56Hz, 60Hz, 72Hz
832x624 @ 75 Hz
1024x768 @ 60Hz, 65Hz, 72Hz, 75Hz
1152x864 @ 75 Hz
1280x768 @ 65 Hz
1280x800 @ 60 Hz
1280x960 @ 60 Hz
1280x1024 @ 60Hz, 75Hz
1360x768 @ 60 Hz
1366x768 @ 60 Hz
1440x900 @ 60 Hz
1600x1200 @ 60 Hz
1680x1050 @ 60HzÂngulo de visão
Horizontal: ±89° ou 178° total / Vertical: ±89° ou 178° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 400 nits
IntelliTouch: 270 nitsTempo de resposta (típico)
16 msec
Razão de contraste
1000:1
Formato da entrada de vídeo
Analog VGA, DVI video

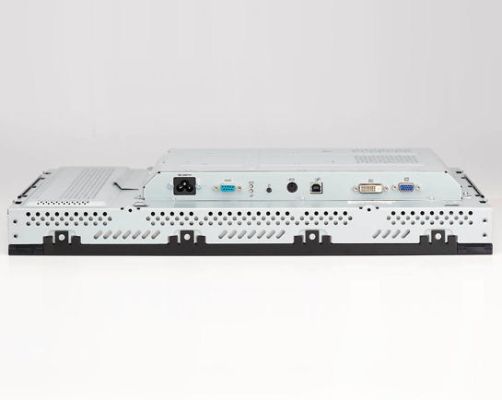

Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type, DVI-D connector
Fonte de alimentação
Internal AC
Tensão de entrada
AC: 100-240 VAC, 50-60 Hz
Conector de entrada
AC: IEC 60320 C6
Frequência de entrada
Horizontal: 30-83 kHz
Vertical: 56-75 HzConsumo de energia (típico)
60 W
Dimensões
19.7" x 13.1" x 3.2" / 500mm x 332 mm x 80 mm
Dimensões da Caixa
23.62" x 19.68" x 9.06" / 600 mm x 500 mm x 230 mm
Peso (sem embalagem)
16.6 lbs / 7.5 kg
Peso (embalado)
23.5 lbs / 10.7 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 60°C / -4°F to 140°F
Umidade
Operating: 20%-80%
Storage: 10%-90%Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, China CCC, Korea MIC, Taiwan BSMI, China RoHS, UL, cUL, FCC, Australia C-Tick, Argentina S-mark, Mexico NOM, CE, Russia PCT, China CCC, Japan VCCI, China RoHS
Elo Declarations: WEEE, IMERCOpções / Periféricos / Upgrades
Kit de cabos sobressalente - Elo P/N: E378229
Caneta stylus IntelliTouch - Elo P/N: D82064-000
OSD remoto Elo (com cabo de 1.8m) - Elo P/N: E622897Caneta stylus IntelliTouch opcional
Stylus pen with rubber tip, designed specifically for use with IntelliTouch SAW touch technology. Part number D82064-000, available at additional cost
