2242L 22" Open Frame Touchscreen (Discontinued November 2014)
Overview

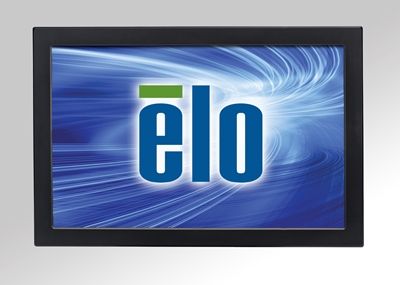

The Elo TouchSystems 2242L, a 22-inch open-frame touchmonitor with IntelliTouch Plus touch technology provides OEMs and design engineers the ability to develop multi-touch applications compatible with Microsoft Windows® 7 operating system for dynamic, reliable touch-enabled applications including graphically intense kiosk applications such as photo kiosks, gaming, concierge and other guest-engagement hospitality experiences. Gaming and hospitality environments present unique performance and durability requirements for touch screens and the Windows 7 operating system delivers distinct design advantages with its stable and innovative touch interface. The 2242L blends these market needs and OS-capabilities of Windows 7 to provide an increased range of touch options for these applications.
2242L Two-finger TouchUnique to the 2242L Windows 7 compatible touchmonitor is the use of Tyco Electronics IntelliTouch Plus which, unlike other multi-touch technologies, utilizes three axes of touch information to deliver sensitive, accurate, drift-free recordings of two simultaneous touch locations anywhere on the screen regardless of position or pressure applied. IntelliTouch Plus utilizes pure-glass construction to deliver excellent imagery, high light transmissions and is not affected by variations in ambient or extreme light. IntelliTouch Plus supports finger and soft stylus activation and features durable, scratch-resistant glass to assure continuous surface performance even if scratched.
IntelliTouch Plus SAW touch technology received Windows 7 Touch Additional Qualification (AQ) status for touch interactivity by meeting test criteria established by Microsoft for Windows 7. With this testing, customers can trust the 2242L, and the ability to effortlessly take advantage of the touch functionality built into Windows 7.
Features
- 22-inch, open-frame
- 16:10 aspect ratio
- Recognizes both two independent touch points and single- and two-finger gestures
- Clear glass surface for high image clarity
- Analog and DVI input video
- Side and rear-mounting options
Especificações
-
Técnico
Modelos
IntelliTouch DT (Clear) - E667969 (Worldwide)
Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - 2 toques
Interface do touch
USB
Tamanho da diagonal
22'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, PowerProporção da tela
16:10
Área ativa
18.7" x 11.7" / 474 mm x 296 mm
Resolução
1680 x 1050 at 60 Hz
Outras resoluções suportadas
720x350 at 70Hz
720x400 at 70Hz
640x480 at 60, 66, 72Hz
800x500 at 60, 75Hz
800x600 at 56, 60, 72Hz
832x624 at 75Hz
1024x768 at 60, 65, 72, 75Hz
1152 x 864 @ 75Hz
1280x768 at 65Hz
1280x968 at 60Hz
1280x1024 at 60, 75Hz
1360x768 at 60Hz
1366x768 at 60Hz
1440x900 at 60Hz
1600x1200 at 60Hz
1680x1050 at 60Hz, 75HzÂngulo de visão
Horizontal: ±80° ou 160° total / Vertical: ±80° ou 160° total
Número de cores
16.7 milhões
Brilho (típico)
LCD panel: 300 nits
IntelliTouch DT: 270 nitsTempo de resposta (típico)
5 msec
Razão de contraste
1000:1
Formato da entrada de vídeo
Analog VGA, DVI-D
Entrada do conector dos sinais de vídeo
Mini D-Sub 15-Pin VGA type, DVI-D connector
Fonte de alimentação
Internal AC
Tensão de entrada
AC: 100-240VAC 50/60Hz
Conector de entrada
AC: IEC 60320 C6
Frequência de entrada
Horizontal: 30-75 kHz
Vertical: 53-76 HzConsumo de energia (típico)
On: 100V/60Hz: 50W
Sleep: 100V/60Hz: 4W
Off: 100V/60Hz: 3.5WDimensões
21.1" x 14.2" x 3.0" / 537 mm x 360 mm x 77 mm
Dimensões da Caixa
27.17" x 10.04" x 20.87" / 690 mm x 255 mm x 530 mm
Peso (sem embalagem)
19.3 lbs / 8.75 kg
Peso (embalado)
28.7 lbs / 13.0 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 50°C / -4°F to 122°F
Umidade
Operating: 20%-80%
Storage: 10%-90%MTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
S-mark, C-Tick, cUL, IC, CCC, CE, VCCI, EK, MIC, NOM, GOST, BSMI, UL, FCC, CB, RoHS, WEEE, IMERC
Opções de montagem
100 mm VESA mount on rear of unit
Bracket mounting on side of unit
See dimensional drawings for detailsOpções / Periféricos / Upgrades
Kit de cabos sobressalente - Elo P/N: E378229
Caneta stylus IntelliTouch - Elo P/N: D82064-000
OSD remoto Elo (com cabo de 1.8m) - Elo P/N: E622897
