4243L Open Frame Touchscreen (Discontinued March 2019)
Overview

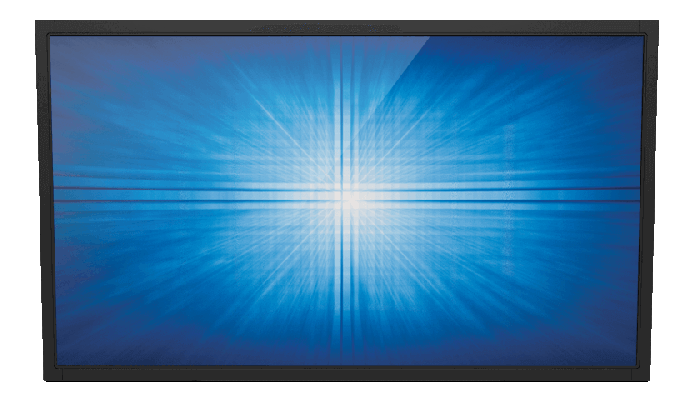

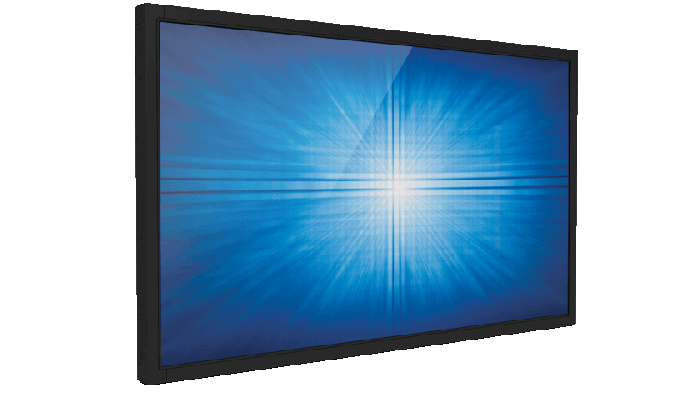

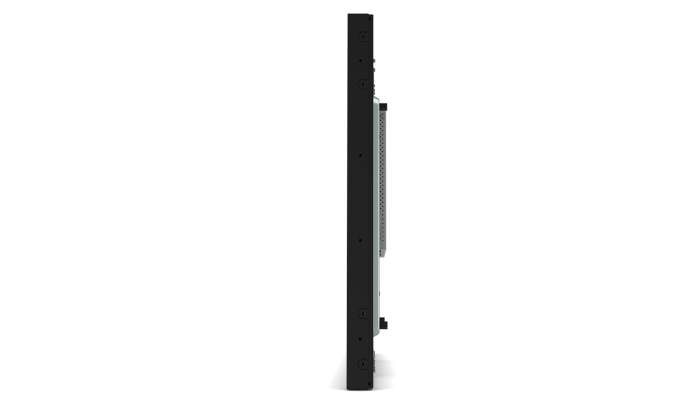

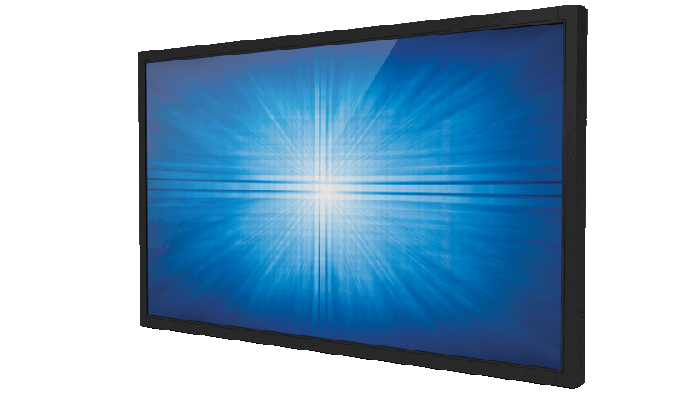

The Elo 4243L 42-inch full HD open-frame touchscreen delivers a professional-grade large format display at less than 2.6 inches (66 mm) in total thickness and less than 1 inch in border width. Designed for touch from the start with proven Elo expertise and reliability built in, the 4243L offers a sleek state-of-the-art slim design using LED backlighting, reducing power consumption and heat to enable thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust UL60950 ball-drop requirements, supporting applications in demanding public access environments. The 4243L features a unique, injection-molded bezel with a virtually invisible water-resistant seal, making it a good choice for the rigors of public use. Narrow borders, multiple mounting options, and a USB touch interface add to the versatility of the 4243L.
Easily integrated.Featuring a compact form factor and optional rack- and front-mount bezels, the 4243L is easy to integrate. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With design and tooling being controlled by Elo, long-lasting product availability, as well as backwards compatibility, can be expected helping to minimize enclosure costs. |
 |
 |
Touch ready.The 4243L is available with a choice of dual- or multi-touch technologies as well as a non-touch option. IntelliTouch® surface acoustic wave (SAW) dual-touch offers the ultimate in optical quality. All 4243L touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to physically wear them out.
|
Commercial-grade.The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
|
 |
Other features.
- 1920 x 1080 full HD provides a bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
- Multiple mounting options are available
- Worldwide agency approvals and a three-year standard warranty extendable to five years
- Integrated power supply
Similar products.
3243L 32" Open Frame Touchscreen4202L 42" Interactive Digital Signage
4343L 42.5" Open Frame Touchscreen
5543L 55" Open Frame Touchscreen
Especificações
-
Técnico
Modelos
IntelliTouch Dual Touch (Asia) - E000445
Non-Touch (Worldwide) - E000447Cor do Monitor
Preto
Tecnologia do Touch
SAW (IntelliTouch® - Ondas de superfície acústica) - 2 toques
Sem touchTamanho da diagonal
42'' diagonais, LCD (LED) TFT matriz ativa
Visualização na tela (OSD)
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Video Source
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.Proporção da tela
16:9
Área ativa
36.6" x 20.6" / 930mm x 523mm
Resolução
1920 x 1080
Outras resoluções suportadas
640 x 480 at 60Hz
800 x 500 at 60Hz
800 x 600 at 56/60Hz
1024 x 768 at 60Hz
1280 x 720 at 60Hz
1280 x 960 at 60 Hz
1280 x 1024 at 60Hz
1360 x 768 at 60 Hz
1366 x 768 at 60 Hz
1440 x 900 at 60 Hz
1600 x 1200 at 60 Hz
1680 x 1050 at 60 Hz
1920 x 1080 at 60 HzÂngulo de visão
Horizontal: ±89° ou 178° total / Vertical: ±89° ou 178° total
Número de cores
1073.7 milhões
Brilho (típico)
LCD panel: 500 nits
IntelliTouch Dual Touch: 450 nits
Non-Touch: 450 nitsTempo de resposta (típico)
8 msec
Razão de contraste
4000:1
Formato da entrada de vídeo
Analog VGA, HDCP-capable HDMI 1.3 (WW model only), DVI (Asian model only)
Entrada do conector dos sinais de vídeo
Female DE-15 VGA, HDMI Type A Receptacle Connector (WW model only)
Female DVI-D Dual Link Connector (Asian model only)Entrada da frequência de vídeo
Horizontal: 31 - 80 KHz
Vertical: 47 - 63 HzFonte de alimentação
Internal AC
Tensão de entrada
AC: 100-240 VAC, 50/60 Hz
Conector de entrada
AC: IEC 60320 C14
Consumo de energia (típico)
Monitor Only
(Typical at 110V at 60Hz):
ON: 104 W
SLEEP: 2.0 W
OFF: 0.5 W
(Typical at 230V at 50Hz):
ON: 102.0 W
SLEEP: 2.5 W
OFF: 1 WDimensões
38.5" x 22.6" x 2.6" / 978mm x 575mm x 65mm
Dimensões da Caixa
45.9" x 33.7" x 11.02" / 1168mm x 856mm x 280mm
Peso (sem embalagem)
44 lbs / 20 kg
Peso (embalado)
61 lbs / 27.67 kg
Temperatura de operação
0°C to 40°C / 32°F to 104°F
Temperatura de armazenamento
-20°C to 50°C / -4°F to 122°F
Umidade
Operating: 20% to 80%
Storage: 10% to 95%Vedado
Touchscreen sealed to bezel
Touchscreen sealed to LCDMTBF - Tempo médio entre falhas
50.000 horas demonstradas
Garantia
3 anos
Aprovações e declarações reguladoras
Australia RCM
Canada cUL, IC
China CCC
Europe CE
Japan VCCI
Korea KCC e-standby
Mexico NOM, CoC
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE
Russia EACOpções de montagem

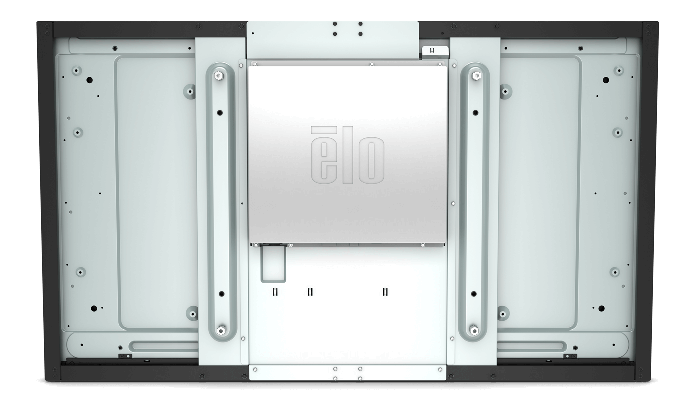

Mounting Options 400, 400, 6mm VESA mount
Side mounting brackets includedOpções / Periféricos / Upgrades
OSD remoto (RJ45) - Elo P/N: E483757
Elo Backpack® - Elo P/N: E611864
Caneta stylus IntelliTouch - Elo P/N: D82064-000
Kit de substituição del suporte para o modelo IT 3243L - Elo P / N: E727550
